Visual Testing with Applitools, Appium, and Amazon AWS Device Farm

This is where Amazon’s AWS Device Farm comes into play. This powerful service can build a testing environment. It uses physical mobile devices to run your tests! All you do is upload your tests to Amazon, specify the devices you want, and it will take it from there!

In one of my recent articles, How Visual UI Testing can speed up DevOps flow I showed how you can configure a CD/CI service to run your Visual UI tests. The end result would be the same, whether you are running your tests locally, or via such services. Once the tests run, you can always check the results over the Applitools Test Manager Dashboard.

In this article, I will show you how you can run your Visual UI tests, whether you’ve written them for your mobile or web app, on real physical mobile devices in the cloud. For this, I will be employing Applitools, Appium, and AWS Device Farm.

AWS Device Farm for mobile visual testing

AWS Device Farm is a mobile app testing platform that helps developers automatically test their apps on hundreds of real devices in minutes.

When it comes to testing your app over mobile devices, the choices are numerous. Amazon helps to build a “Device Farm” on behalf of the developers and testers, hence the name.

Here are some of the major advantages and features for using this service:

1. Cross-platform. Android and iOS platforms (Native, Hybrid, and Web) are all supported. This includes native apps built with:
   • Java/Kotlin for Android.
   • Swift for iOS.
   • PhoneGap.
   • Xamarin.
   • Unity.
   • And web apps built for mobile browsers.

2. Scale. AWS Device Farm supports hundreds of unique physical devices, categorized by make, model, and operating system. You may also choose to run your tests across multiple instances of the same device. All these devices are available for you with a few mouse clicks!

3. Safety and Security. AWS Device Farm provides full hardware and software isolation. The devices are physically isolated from one another! They cannot feed each other, so there’s no way for one phone to take a photo, video, or audio recording of a device sitting next to it. In addition, the devices are not visible to each other from a wireless or network point of view. Bluetooth and Wi-Fi traffic is not shared. On the software side, the devices are dynamically tethered to a host machine. When you run your test on a host machine, it has the device plugged into it over USB. That very host machine, that executes your code, is brought up on the fly, runs your code, and is then torn down. It’s never reused between customers.

4. Reporting. The test results, together with any screenshots, videos, logs and performance logs, are all logged, and saved in the cloud. The AWS Device Farm offers a rich Dashboard to allow you to browse any of these logs in order to debug your test runs.

AWS Device Farm supports a number of test runners. This includes Appium Java JUnit, Appium Python, Appium Ruby, and Appium Java TestNG. Back in January 2019, Amazon announced support for the Appium Node.js test runner. This means you can build your tests with Selenium Webdriver, for instance, and have it run on top of AWS Device Farm.

Now that you have an idea about AWS Device Farm, let’s move on, and discover the Appium automation testing framework.

Selenium Webdriver for browser app automation

Selenium WebDriver is a browser automation framework that allows a developer to write commands, and send them to the browser. It offers a set of clients with a variety of programming languages (Java, JavaScript, Ruby, Python, PHP and others).

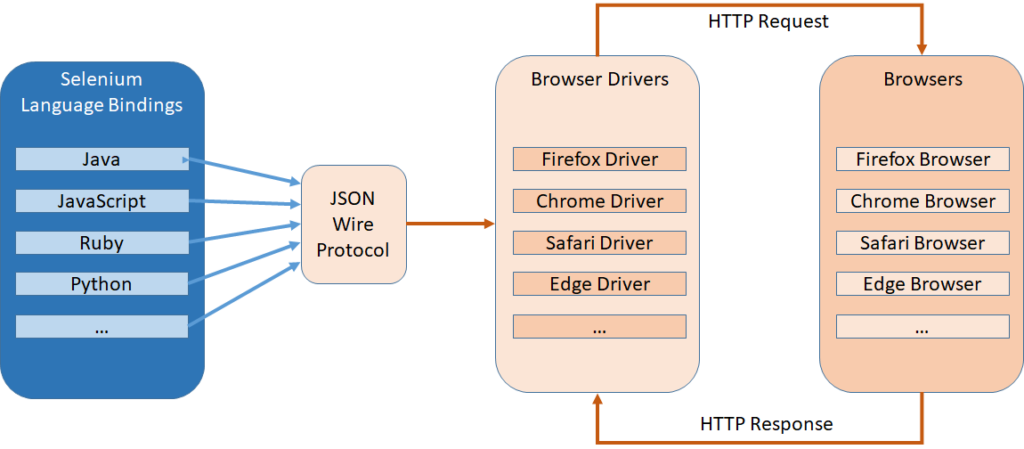

Figure 1 below shows the Selenium WebDriver architecture:

Figure 1: Selenium WebDriver Architecture

Selenium WebDriver architecture consists of:

• Selenium Language Bindings. These bindings are Selenium Client Libraries, offered in multiple programming languages, that developers use to send control commands to the browser. For instance, a developer can open a browser instance, and query for an element in DOM, among other tasks.

• JSON Wire Protocol. This is a REST API Protocol (JSONWP) that all WebDriver Server implementations adhere to and understand. Each of the queries and commands the developers write using the Selenium Client Library are converted to HTTP Requests, with the query or command, as payload in the JavaScript Object Notation (JSON) format, and is sent to the WebDriver Server.

• Browser Drivers. These are WebDriver Server implementations for a variety of browsers. A WebDriver Server implementation is nothing but an HTTP Server that receives requests from the Selenium Client Library using the JSON Wire Protocol format. It then analyzes the HTTP Request and prepares a browser-specific command to execute against the browser. If the request is a GET request, the browser-driver should return a response. Otherwise, a POST request is a one-way request to execute an action only without any response.

• Browsers. These are the browsers that have a corresponding WebDriver Server implementation. The WebDriver Server implementations communicate with the Browsers over HTTP via the DevTools Protocol of each browser.

Selenium 4 is obseleting the JSONWP in favor of the new W3C WebDriver standard.

Here’s a quick tutorial on using and learning Selenium WebDriver.

With that brief overview of Selenium WebDriver, let’s move on and explore Appium.

Appium for mobile app automation

Appium is an open-source tool to automate Mobile app testing. It’s a cross-platform that supports both OS (Android and iOS) test scripts. It is tested on simulators (iOS), emulators (Android) and real devices (iOS, Android).

It’s an HTTP Server written in Node.js that creates and handles WebDriver sessions. When you install Appium, you are actually installing the Appium Server. It follows the same approach as the Selenium WebDriver, which receives HTTP requests from the Client Libraries in JSON format with the help of JSONWP. It then handles those HTTP Requests in different ways. That’s why you can make use of Selenium WebDriver language bindings, client libraries and infrastructure to connect to the Appium Server.

Instead of connecting a Selenium WebDriver to a specific browser WebDriver, you will be connecting it to the Appium Server. Appium uses an extension of the JSONWP called the Mobile JSON Wire Protocol (MJSONWP) to support the automation of testing for native and hybrid mobile apps.

It supports the same Selenium WebDriver clients with a variety of multiple programming languages such as Java, JavaScript, Ruby, Python, PHP and others.

Being a Node.js HTTP Server, it works in a client-server architecture. Figure 2 below depicts the Appium Client-Server Architecture model:

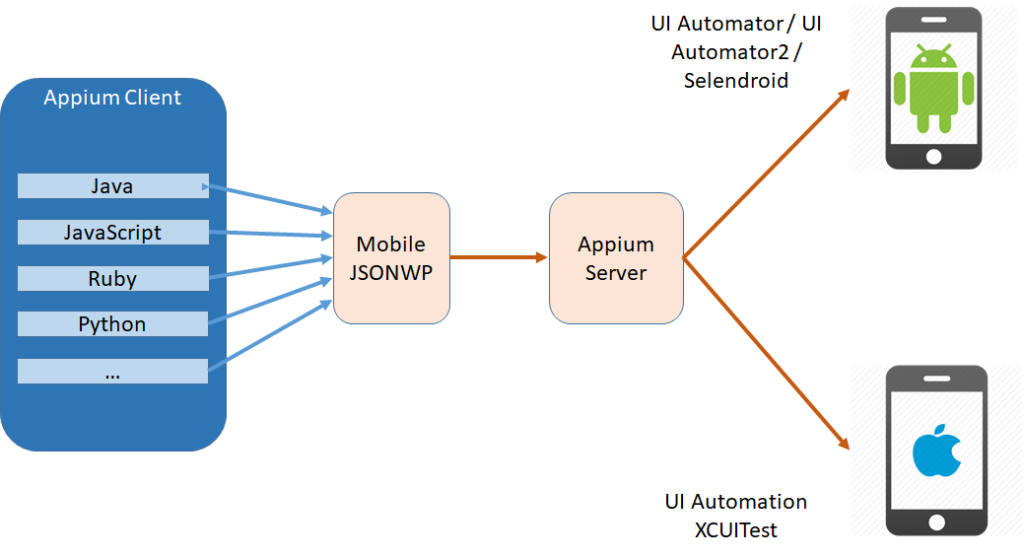

Figure 2: Appium Server Architecture

Appium architecture consists of:

• Appium Client. The Client Library that communicates with the Appium Server via a session by sending the commands and queries over HTTP in JSON format. These requests are eventually executed against the specific Mobile device (emulator or real device).

• Mobile JSONWP. This is the communication Protocol that both Appium Clients and Appium Server understand and use to pass along the commands and queries to be executed. The Appium Server differentiates between iOS and Android Request using the Desired Capabilities argument. It’s a collection of keys and values encoded in a JSON object, sent by Appium clients to the server when a new automation session is requested. They contain all the information about the device to be used to run the tests against. Here’s a detailed tutorial on all possible desired capabilities to use with Appium. Desired Capabilities for Appium

• Appium Server. It’s a Node.js HTTP server that receives requests from the client libraries, translates them into meaningful commands and passes them over to the specific UI Automator.

• UI Automators. They are used to execute commands against the Mobile device/emulator/simulator. Examples are: UI Automator2 and XCUITest (iOS)

The results of the test session are then communicated back to the Appium Server, and back to the Client in the form of logs, using the Mobile JSONWP.

Now that you are well equipped with knowledge for Selenium WebDriver and Appium, let’s go to the demo section of this article.

Demo

In this section, we will write a Visual UI test script to test a Web page. We will run the tests over an Android device both locally and on AWS Device Farm.

I will be using both Selenium WebDeriver and Appium to write the test script.

Prerequisites

Before you can start writing and running the test script, you have to make sure you have the following components installed and ready to be used on your computer:

• Java installed
• JAVA_HOME environment variable is set to the Java SDK path
• Node.js installed

Assuming you are working on a MacOS computer, you can verify the above installations by running the following bash commands:

echo $JAVA_HOME // this should print the Java SDK path
node -v // this should print the version of Node.js installed
npm -v // this should print the version of the Node Package Manager installed

Component Installations

For this demo we need to install Appium Server, Android Studio / SDK and finally make sure to have a few environment variables properly set.

Let’s start by installing Appium Server. Run the following command to install Appium Server locally on your computer.

npm install -g appium

The command installs the Appium NPM package globally on your computer. To verify the installation, run the command:

appium -v // this should print the Appium version

Now let’s install Android Studio / SDK so that you can run the test script on an emulator or real device. You could install the Android SDK only but then you have to do additional advanced steps to properly configure the Android environment on your computer. I highly recommend installing the Android Studio as it makes your life easier.

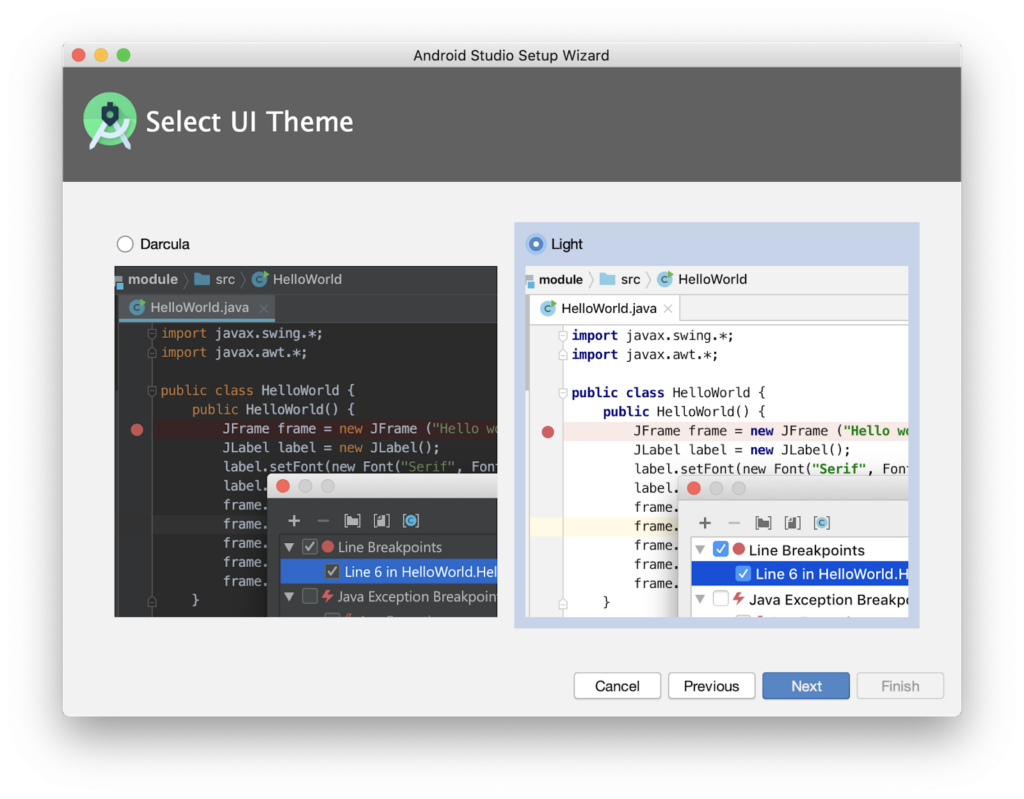

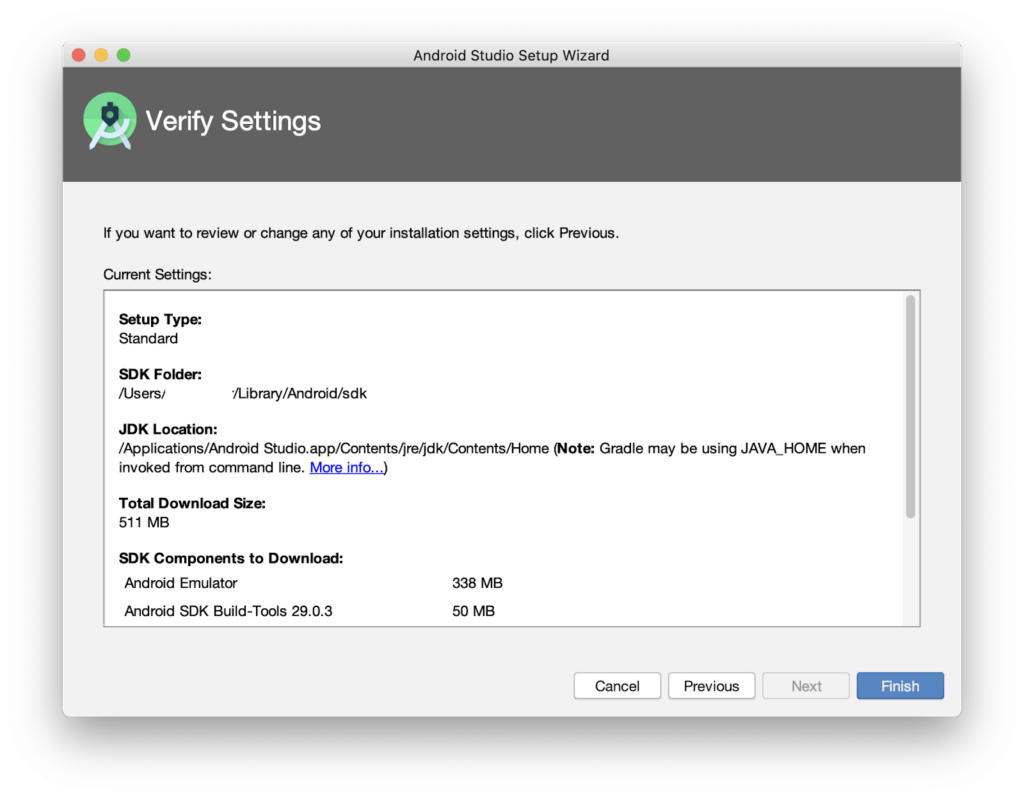

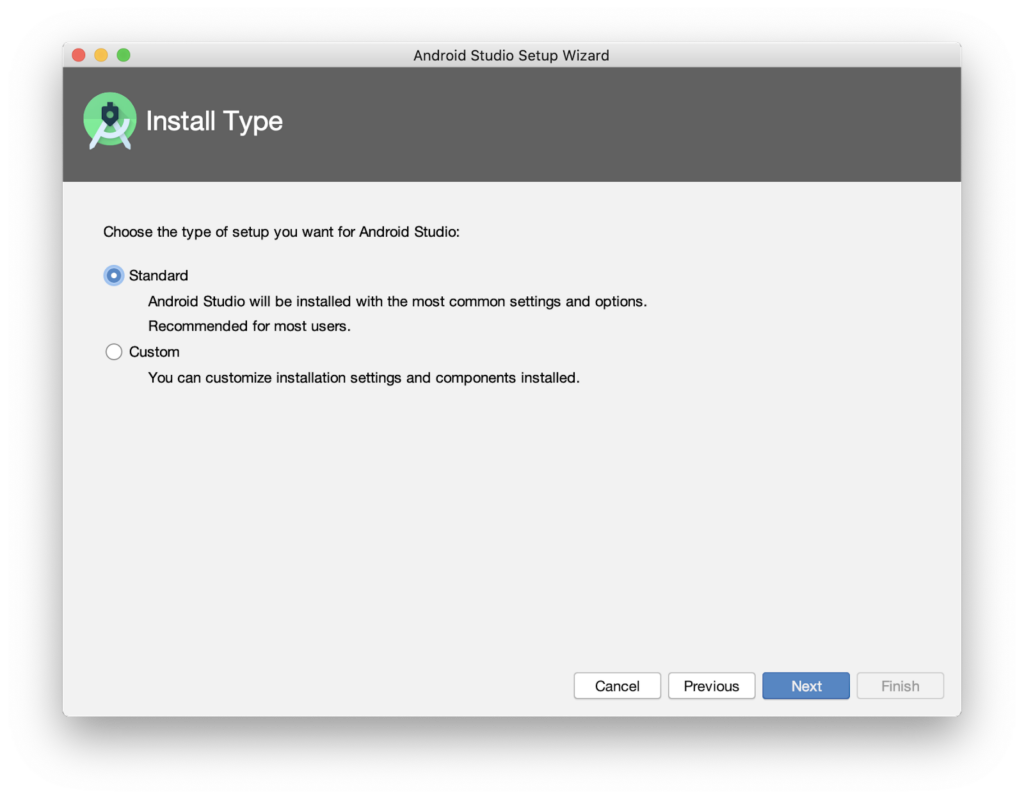

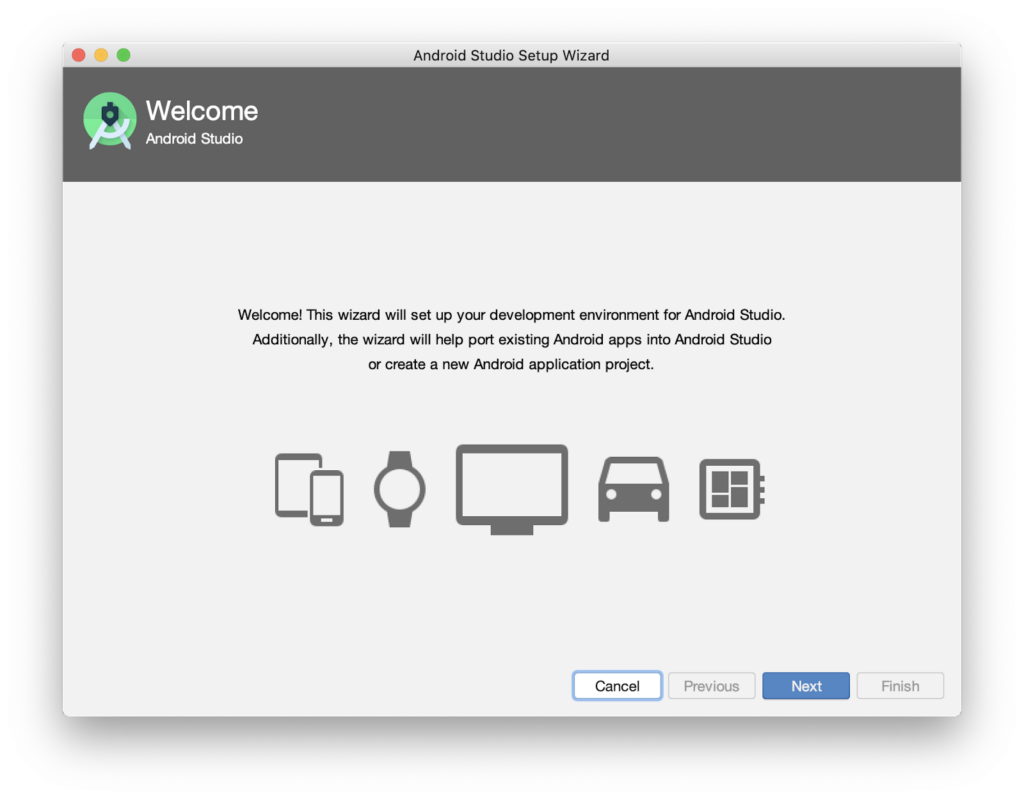

Download the Android Studio executable. Follow the steps below to install locally on your computer:

Notice the location where the Android SDK was installed. It’s /Users/{User Account}/Library/Android/sdk.

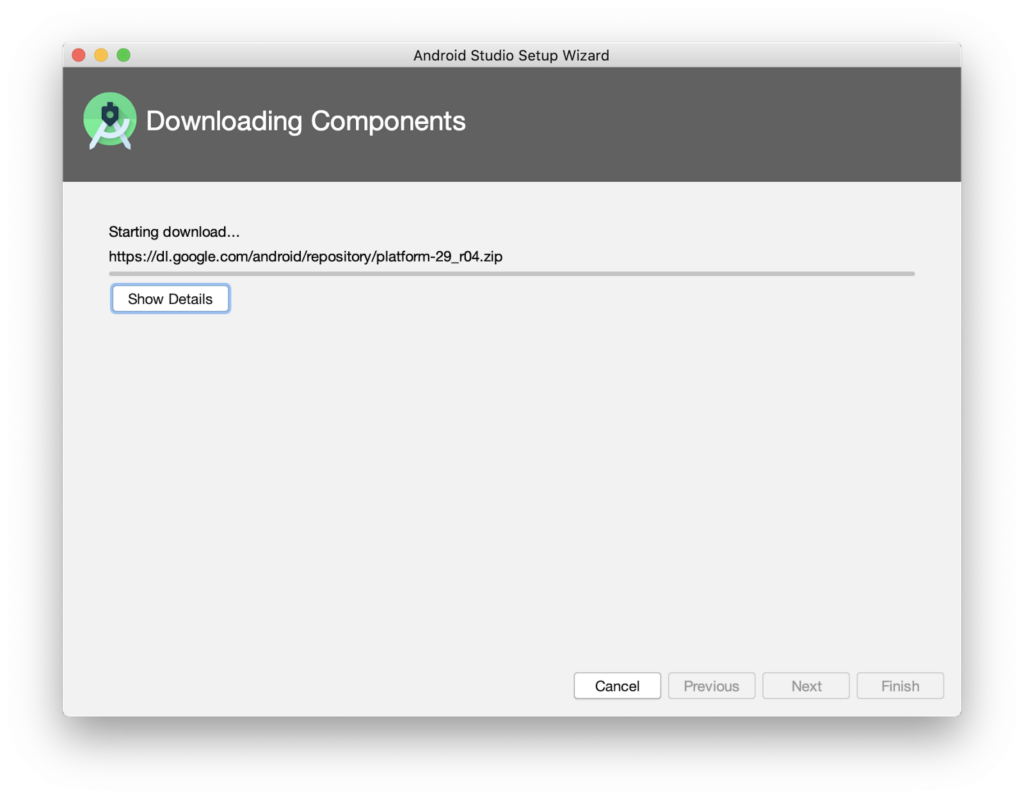

Wait until the download and installation is complete. That’s all!

Because I want to run the test script locally over an Android emulator, let’s add one.

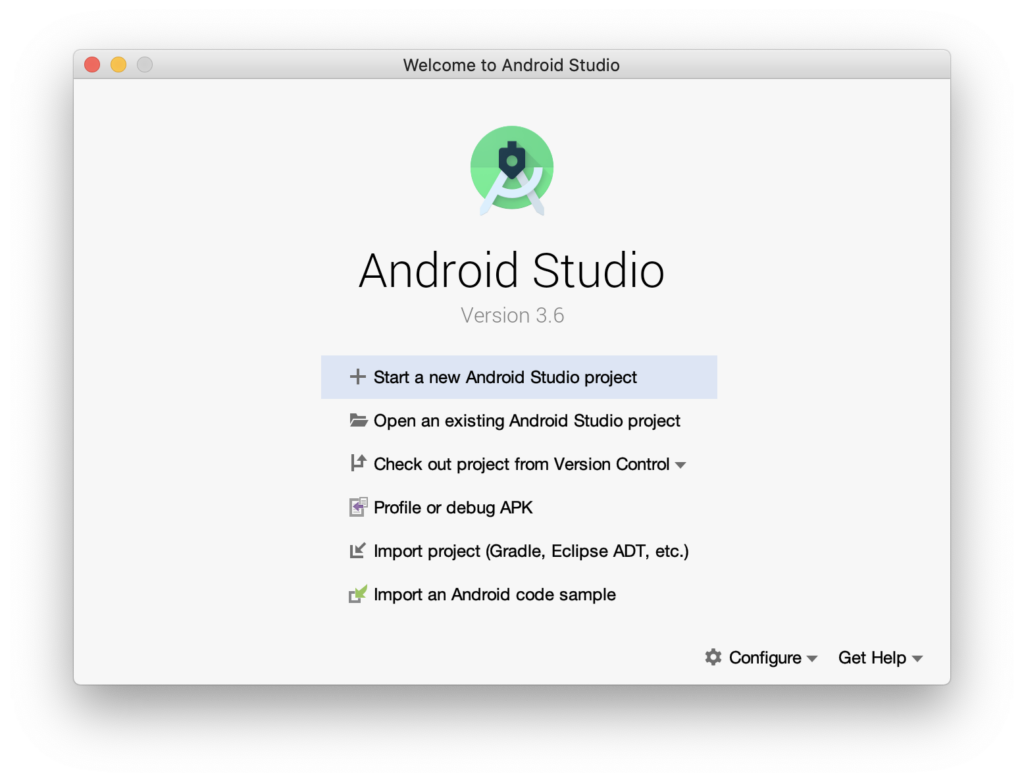

Open the Android Studio app:

Click the Configure icon:

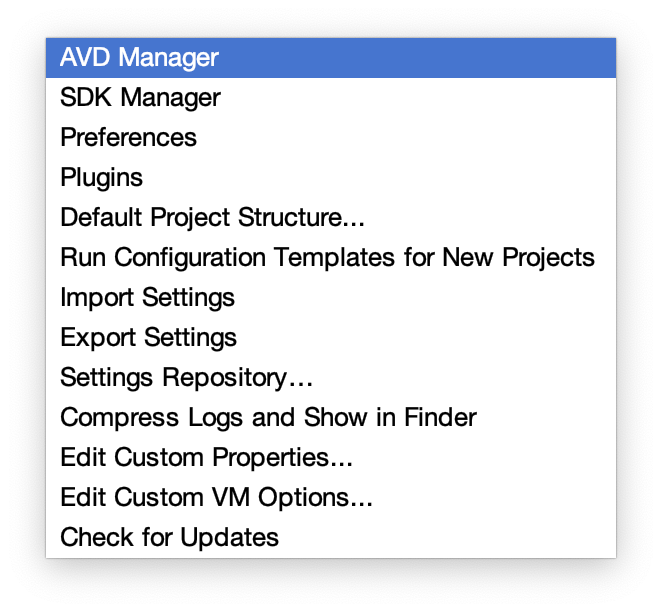

Select the AVD Manager menu item.

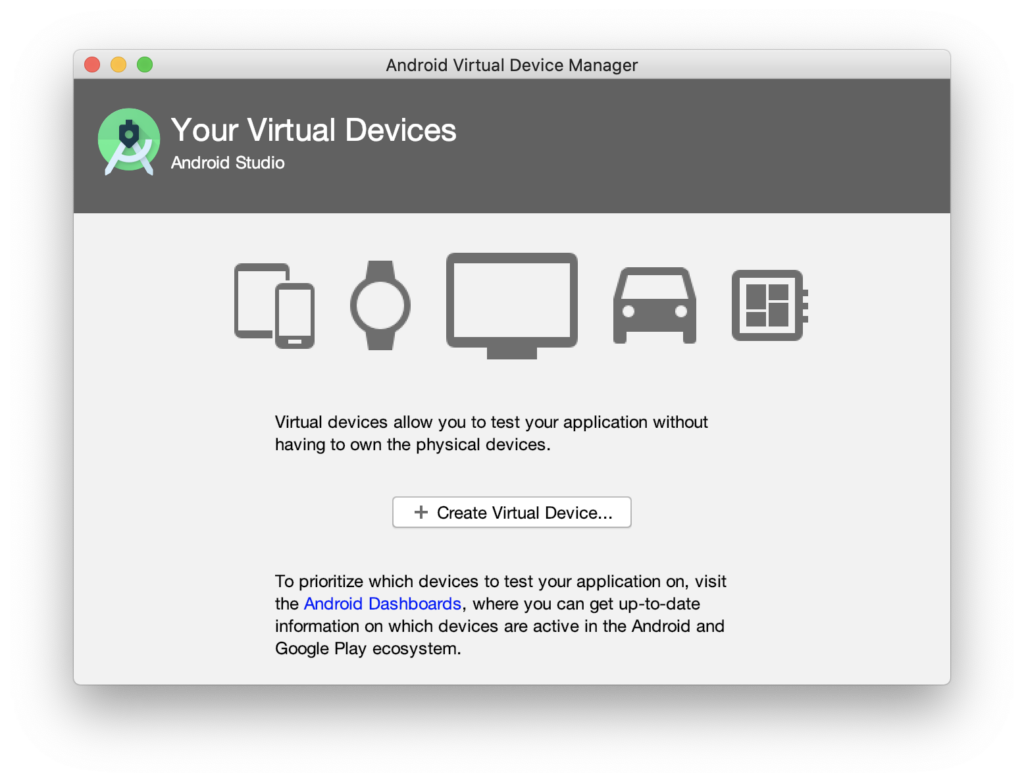

Click the + Create Virtual Device button.

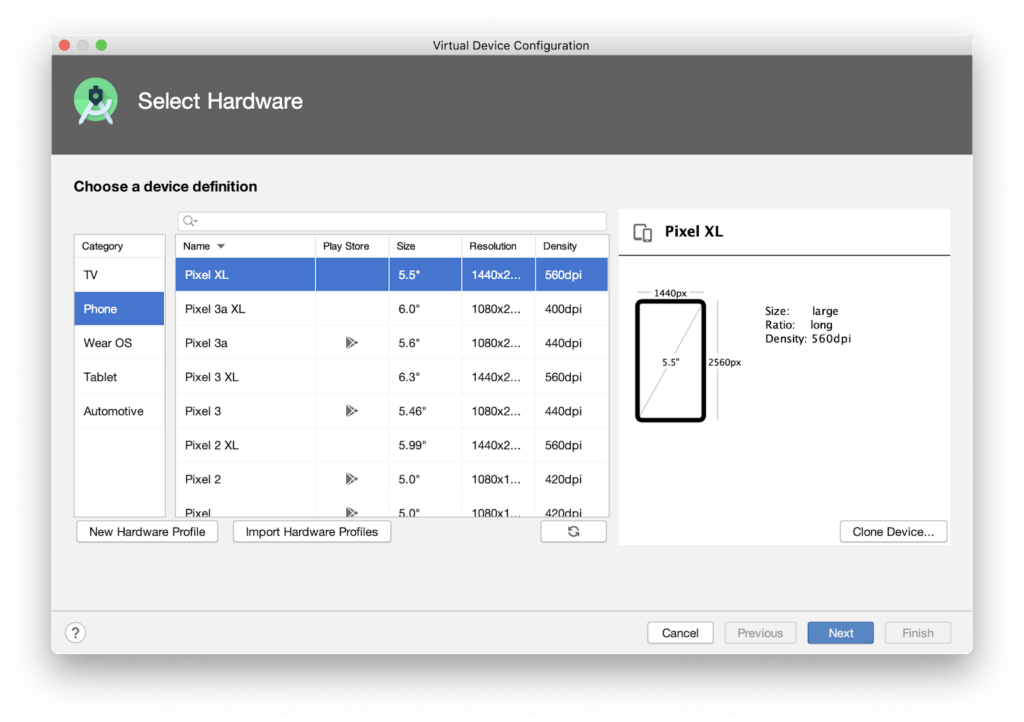

Locate and click the Pixel XL device then hit Next.

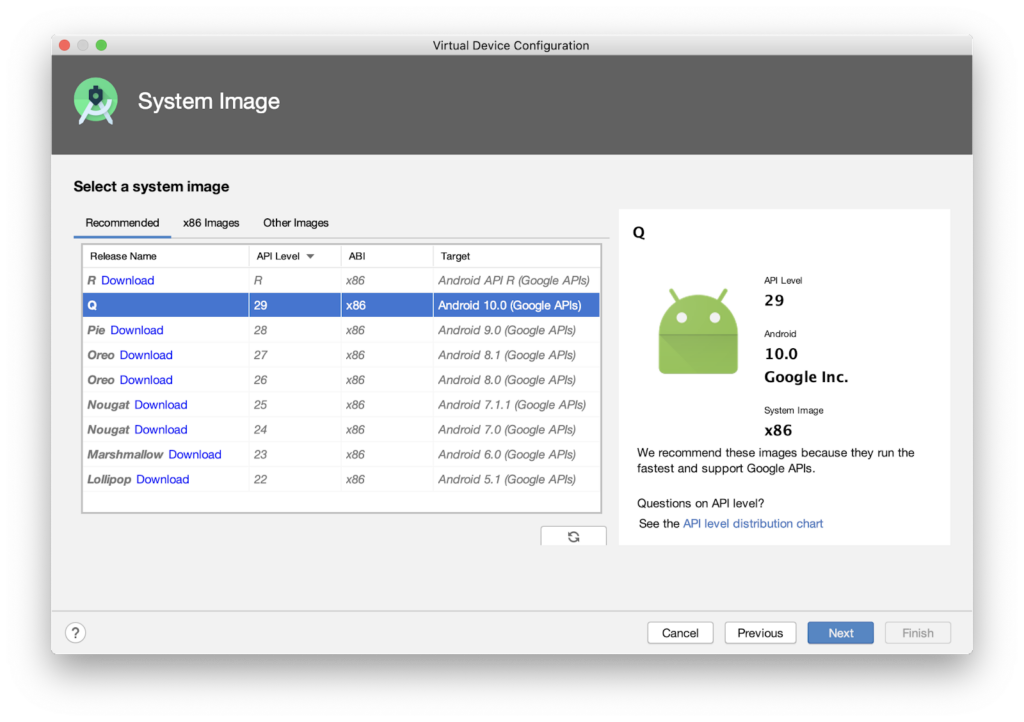

Locate the Q release and click the Download link.

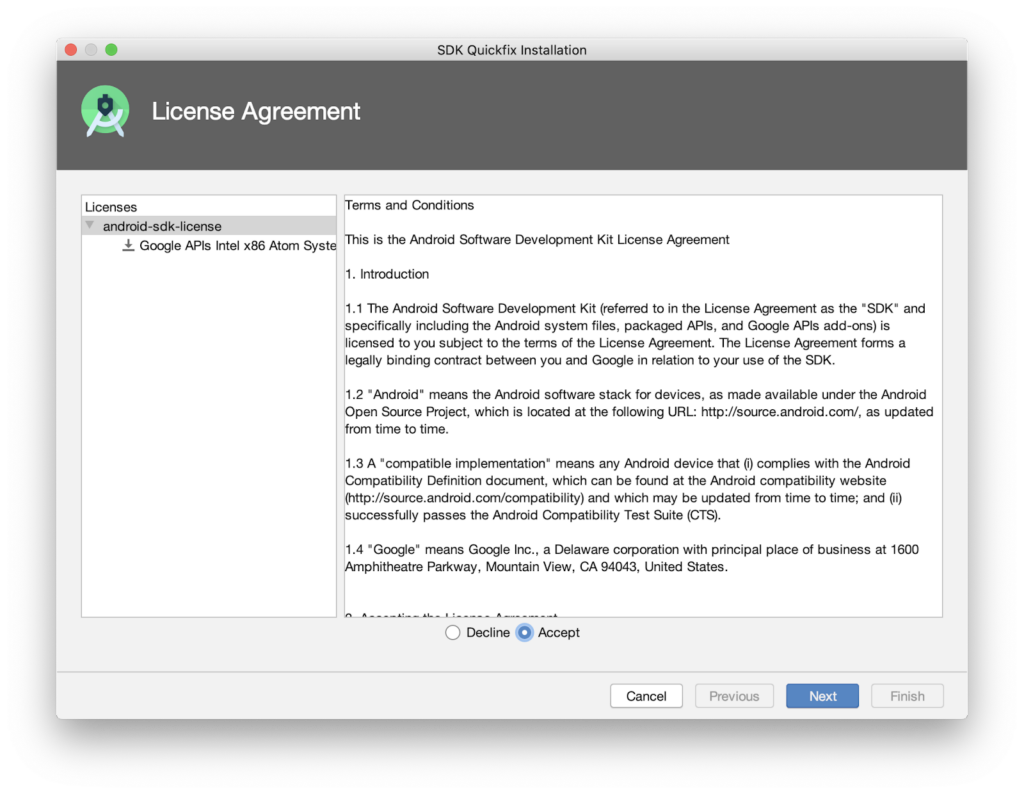

Read and accept the Terms and Conditions then hit Next.

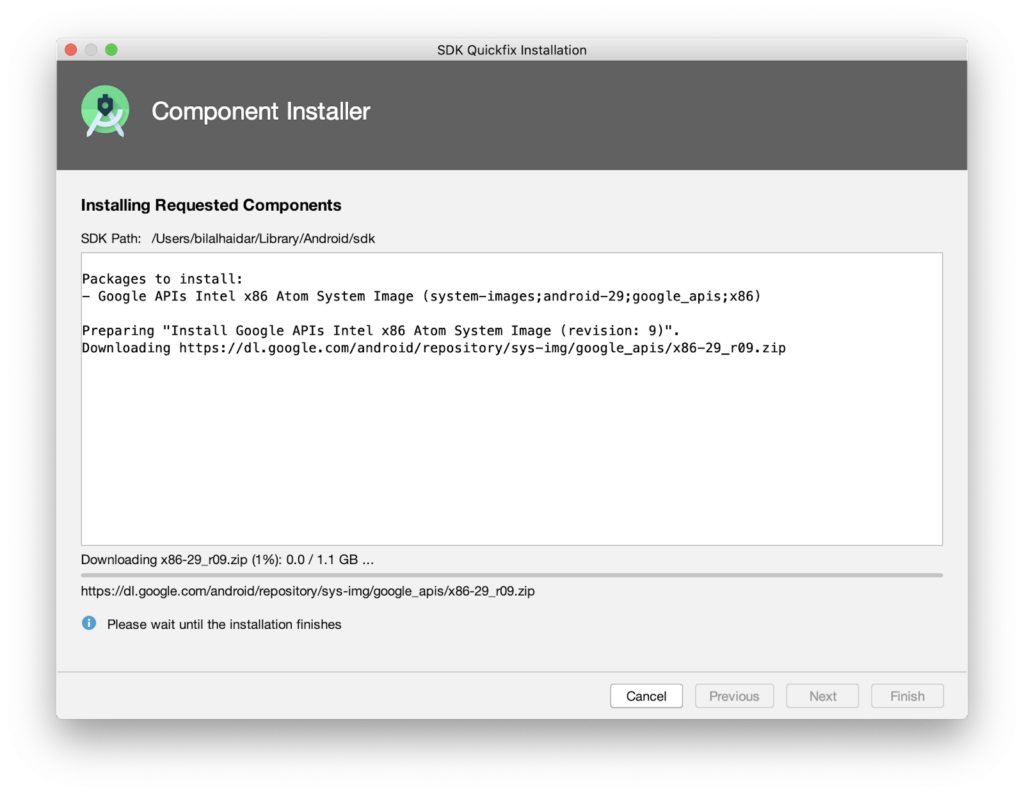

The Android 10, also known as Q release, starts downloading.

Once the installation is complete, click the Next button to continue setting up an Android device emulator.

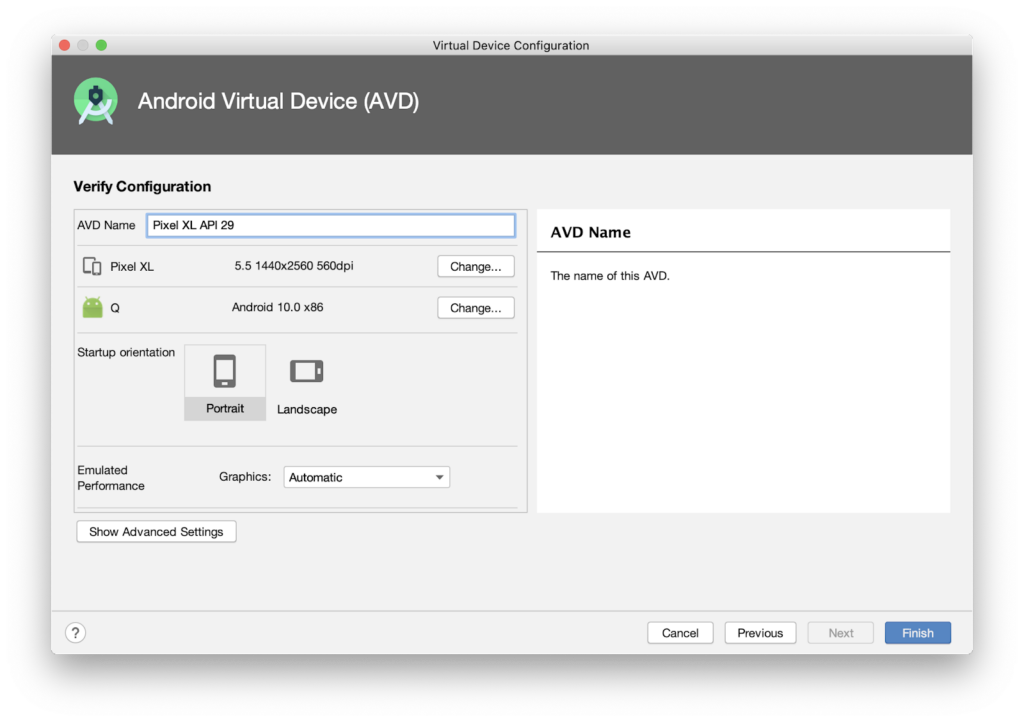

The installation is complete. Grab the AVD Name as you will use it later on in the test script, and hit Finish.

Finally, we need to make sure the following environment variables are set on your computer. Open the ~/.bash_profile file, and add the following environment variables:

APPLITOOLS_API_KEY={Get the Applitools API Key from Applitools Test Manager}
export APPLITOOLS_API_KEY
ANDROID_HOME=/Users/{Use your account name here}/Library/Android/sdk
export ANDROID_HOME
ANDROID_HOME_TOOLS=$ANDROID_HOME/tools
export ANDROID_HOME_TOOLS
ANDROID_HOME_TOOLS_BIN=$ANDROID_HOME_TOOLS/bin
export ANDROID_HOME_TOOLS_BIN
ANDROID_HOME_PLATFORM=$ANDROID_HOME/platform-tools
export ANDROID_HOME_PLATFORM
APPIUM_ENV="Local"
export APPIUM_ENV

Finally, add the above environment variables to the $PATH as follows:

export $PATH=$PATH:$ANDROID_HOME:$ANDROID_HOME_TOOLS:$ANDROID_HOME_TOOLS_BIN:$ANDROID_HOME_PLATFORM

One last major component that you need to download, and have on your computer, is the ChromeDriver. Navigate to the Appium ChromeDriver website, and download the latest workable ChromeDriver release for Appium. Once downloaded, make sure to move the file to the location: /usr/local/bin/chromedriver

That’s it for the installations! Let’s move on and explore the Visual UI test script in depth.

Run the Visual UI Test Script locally

You can find the source code demo of this article on this GitHub repo.

Let’s explore the main test script in this repo.

"use strict";

;(async () => {

    const webdriver = require("selenium-webdriver");
    const LOCAL_APPIUM = "https://web.archive.org/web/20221206000829/http://127.0.0.1:4723/wd/hub";

    // Initialize the eyes SDK and set your private API key.
    const { Eyes, Target, FileLogHandler, BatchInfo, StitchMode } = require("@applitools/eyes-selenium");

    const batchInfo = new BatchInfo("AWS Device Farm");
    batchInfo.id = process.env.BATCH_ID
    batchInfo.setSequenceName('AWS Device Farm Batches');

    // Initialize the eyes SDK
    let eyes = new Eyes();
    eyes.setApiKey(process.env.APPLITOOLS_API_KEY);
    eyes.setLogHandler(new FileLogHandler(true));
    eyes.setForceFullPageScreenshot(true)
    eyes.setStitchMode(StitchMode.CSS)
    eyes.setHideScrollbars(true)
    eyes.setBatch(batchInfo);

    const capabilities = {
        platformName: "Android",
        deviceName: "Android Emulator",
        automationName: "UiAutomator2",
        browserName: 'Chrome',
        waitforTimeout: 30000,
        commandTimeout: 30000,
    };

    if (process.env.APPIUM_ENV === "Local") {
        capabilities["avd"] = 'Pixel_XL_API_29';
    }

    // Open browser.
    let driver = new webdriver
        .Builder()
        .usingServer(LOCAL_APPIUM)
        .withCapabilities(capabilities)
        .build();

    try {
        // Start the test
        await eyes.open(driver, 'Vuejs.org Conferences', 'Appium on Android');

        await driver.get('https://us.vuejs.org/');

        // Visual checkpoint #1.
        await eyes.check('Home Page', Target.window());

        // display title of the page
        await driver.getTitle().then(function (title) {
            console.log("Title: ", title);
        });

        // locate and click the burger button
        await driver.wait(webdriver.until.elementLocated(webdriver.By.tagName('button.navbar__burger')), 2000).click();

        // locate and click the hyperlink with href='/#location' inside the second nav element
        await driver.wait(webdriver.until.elementLocated(webdriver.By.xpath("//web.archive.org/web/20221206000829/https://nav[2]/ul/li[3]/a[contains(text(), 'Location')]")), 2000).click();

        const h2 = await driver.wait(webdriver.until.elementLocated(webdriver.By.xpath("(//h2[@class='section-title'])[4]")), 2000);
        console.log("H2 Text: ", await h2.getText());

        // Visual checkpoint #2.
        await eyes.check('Home Loans', Target.window());

        // Close Eyes
        await eyes.close();
    } catch (error) {
        console.log(error);
    } finally {
        // Close the browser.
        await driver.quit();

        // If the test was aborted before eyes.close was called, ends the test as aborted.
        await eyes.abort();
    }
})();

The test script starts by importing the selenium-webdriver NPM package.

It imports a bunch of objects from the @applitools/eyes-selenium NPM package.

It constructs a BatchInfo object used by Applitools API.

const batchInfo = new BatchInfo("AWS Device Farm");
batchInfo.id = process.env.BATCH_ID
batchInfo.setSequenceName('AWS Device Farm Batches');

It then creates the Eyes object that we will use to interact with the Applitools API.

// Initialize the eyes SDK
let eyes = new Eyes();
eyes.setApiKey(process.env.APPLITOOLS_API_KEY);
eyes.setLogHandler(new FileLogHandler(true));
eyes.setForceFullPageScreenshot(true)
eyes.setStitchMode(StitchMode.CSS)
eyes.setHideScrollbars(true)
eyes.setBatch(batchInfo);

It’s so important to set the Applitools API key at this stage. Otherwise, you won’t be able to run this test. The code above also directs the Applitools API logs to a File located at the root of the project under the name of eyes.log.

Next, we define the device capabilities that we are going to send to Appium.

const capabilities = {
        platformName: "Android",
        deviceName: "Android Emulator",
        automationName: "UiAutomator2",
        browserName: 'Chrome',
        waitforTimeout: 30000,
        commandTimeout: 30000,
    };
    if (process.env.APPIUM_ENV === "Local") {
        capabilities["avd"] = 'Pixel_XL_API_29';
    }

We are using an Android emulator to run our test script over a Chrome browser with the help of the UIAutomator 2 library.

We need to set the avd capability only when running this test script locally. For this property, grab the AVD ID of the Android Device Emulator we set above.

Now, we create and build a new WebDriver object by specifying the Appium Server local URL and the device capabilities as:

const LOCAL_APPIUM = "http://127.0.0.1:4723/wd/hub";
let driver = new webdriver
        .Builder()
        .usingServer(LOCAL_APPIUM)
        .withCapabilities(capabilities)
        .build();

Appium is configured to listen on Port 4723 under the path of /wd/hub.

The rest of the script is usual Applitools business. In brief, the script:

• Opens a new Applitools test session
• Sends a command to navigate the browser to https://us.vuejs.org/
• Grabs the page title and displays it on screen.
• Clicks the Burger Button to expand the menu on a Mobile device.
• Finds the Location section on the page.
• Finally, it prints the H2 text of the Location section.

Notice that the script asserts two Eyes SDK Snapshots. The first captures the home page of the website, while the second captures the Location section.

Finally, some important cleanup is happening to close the WebDriver and Eyes SDK sessions.

Open the package.json file, and locate the two scripts there:

"appium": "appium --chromedriver-executable /usr/local/bin/chromedriver --log ./appium.log",
"test": "node appium.js"

The first runs and starts the Appium Server, and the second to run the test script.

Let’s first run the Appium server by issuing this command:

npm run-script appium

Then, once Appium is running, let’s run the test script by issuing this command:

npm run-script test

Verify Test Results on Applitools Test Manager

Login to the Applitools Test Manager located at: https://applitools.com/users/login

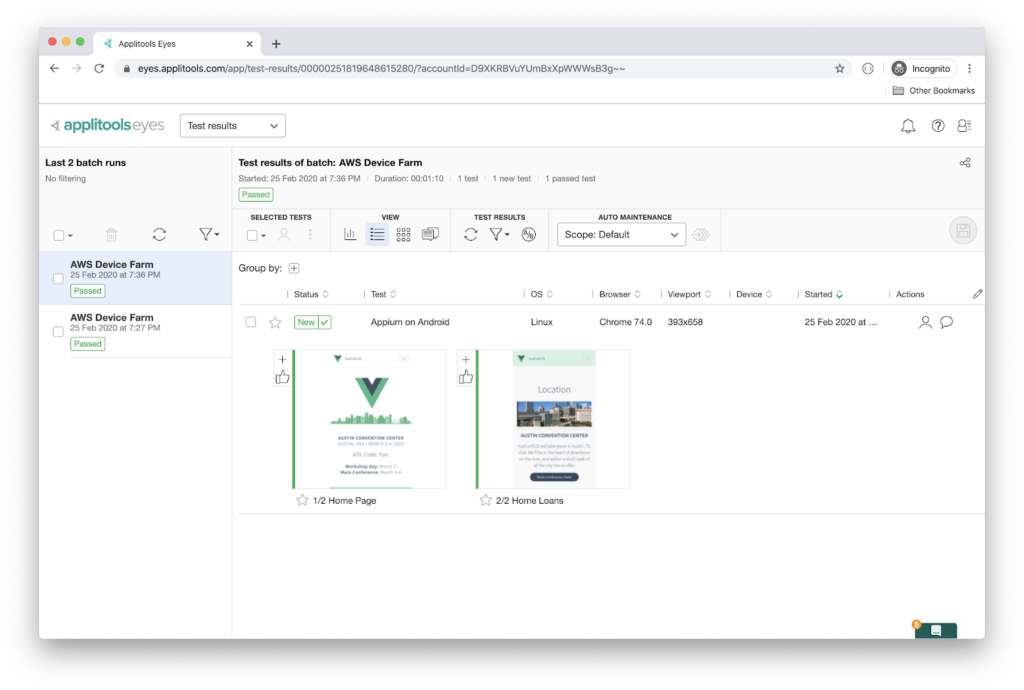

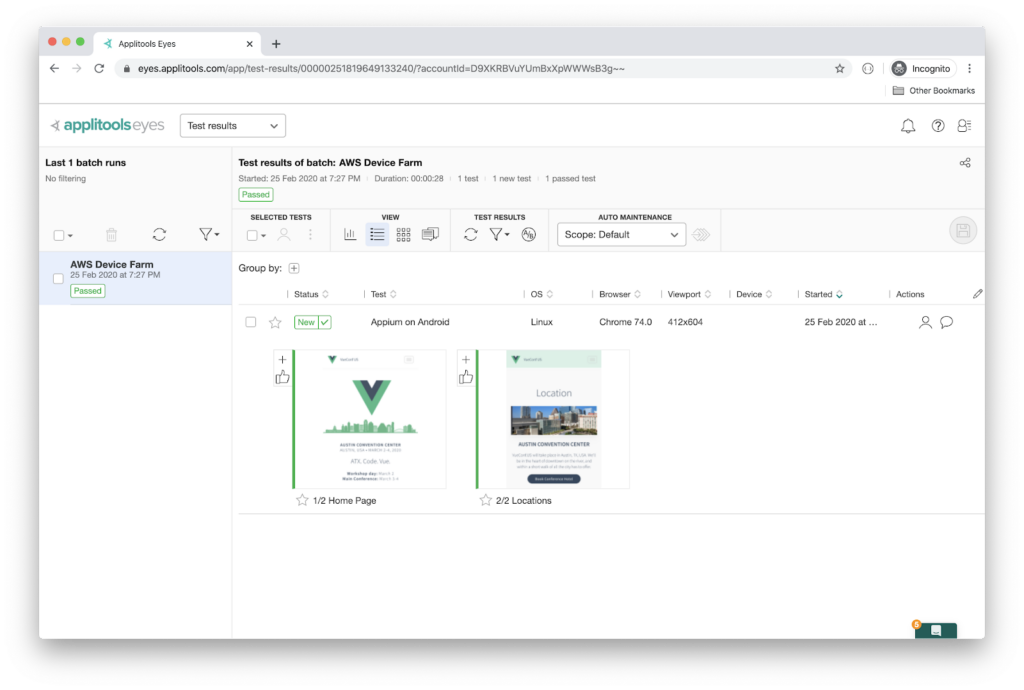

You will see the following test results:

The two snapshots have been recorded!

Run the Visual UI Test Script on AWS Device Farm

Now that the test runs locally, let’s run it on AWS Device Farm. Start by creating a new account on Amazon Web Service website.

Login to your AWS account on this page: https://console.aws.amazon.com/devicefarm

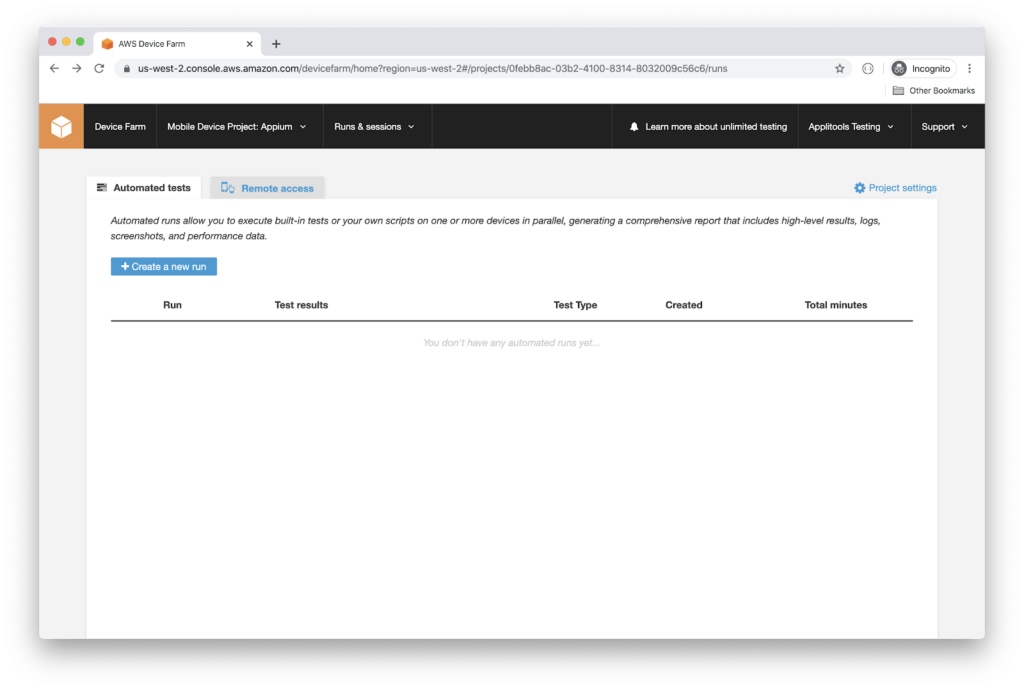

Create a new project by following the steps below:

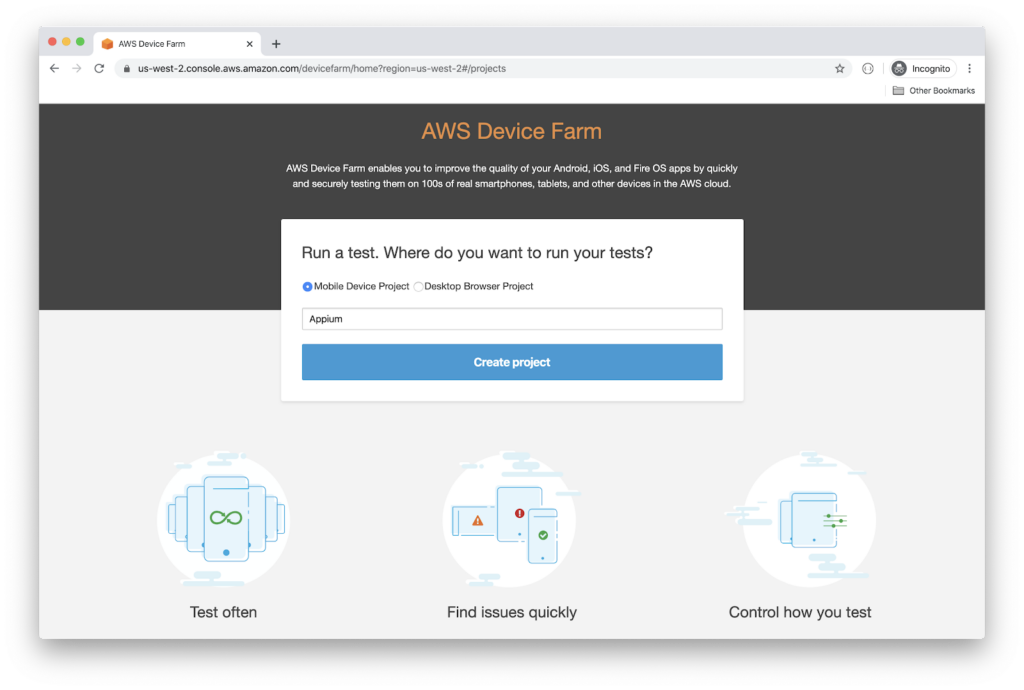

• Select the Mobile Device Project and name your project Appium.
• Click the Create project button.

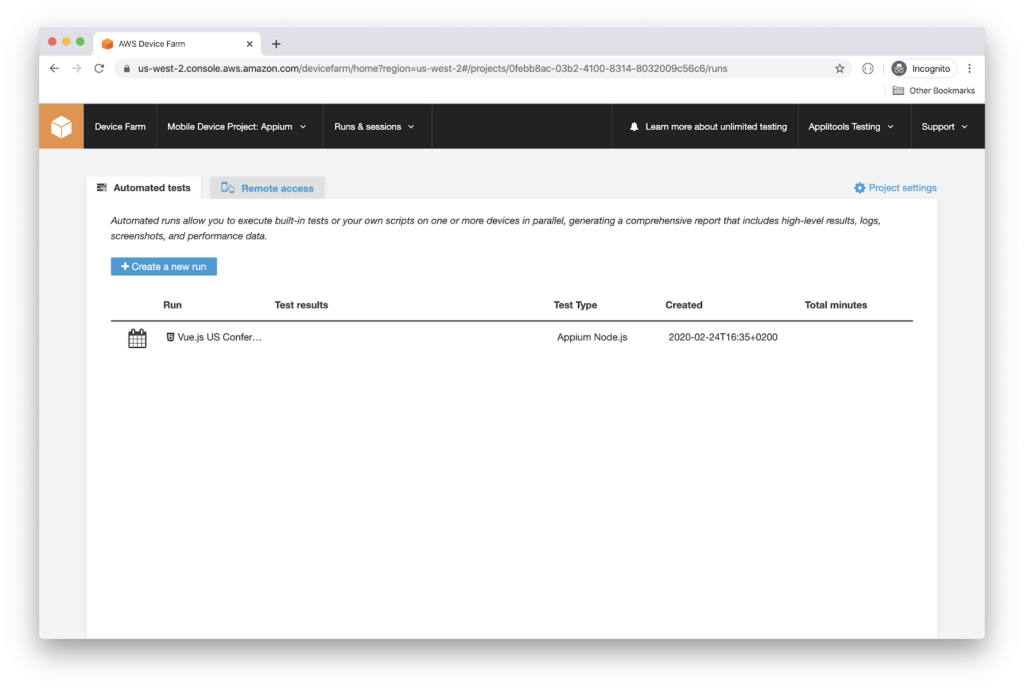

• Locate and click the + Create a new run button.

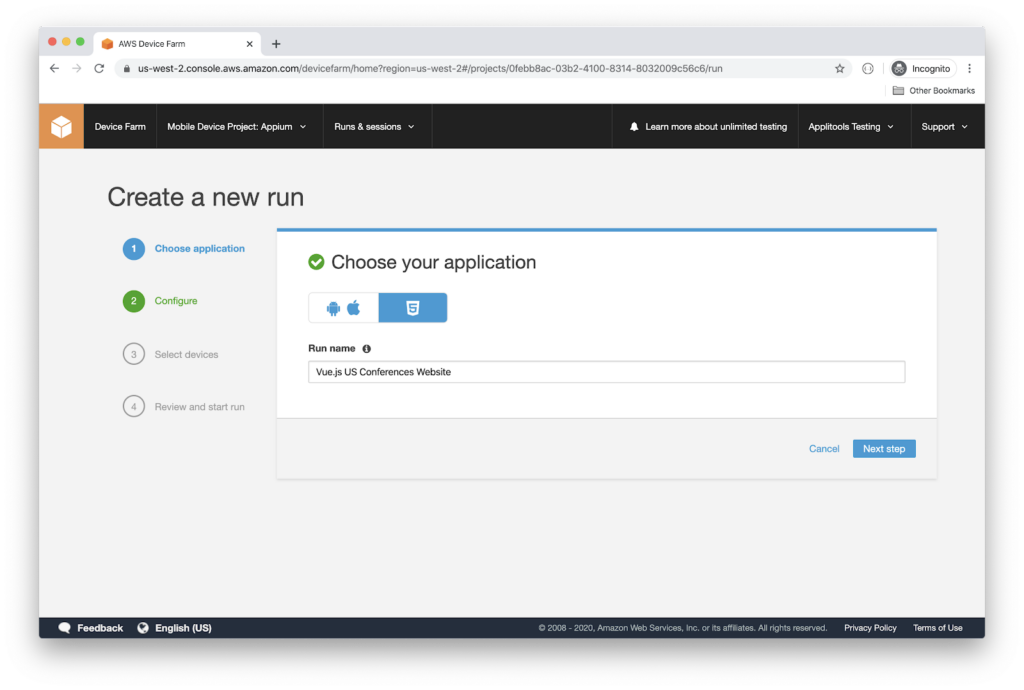

• Select the HTML5 option since we are testing a Web Page on a mobile device.
• Assign your test run a name.
• Click the Next step button.

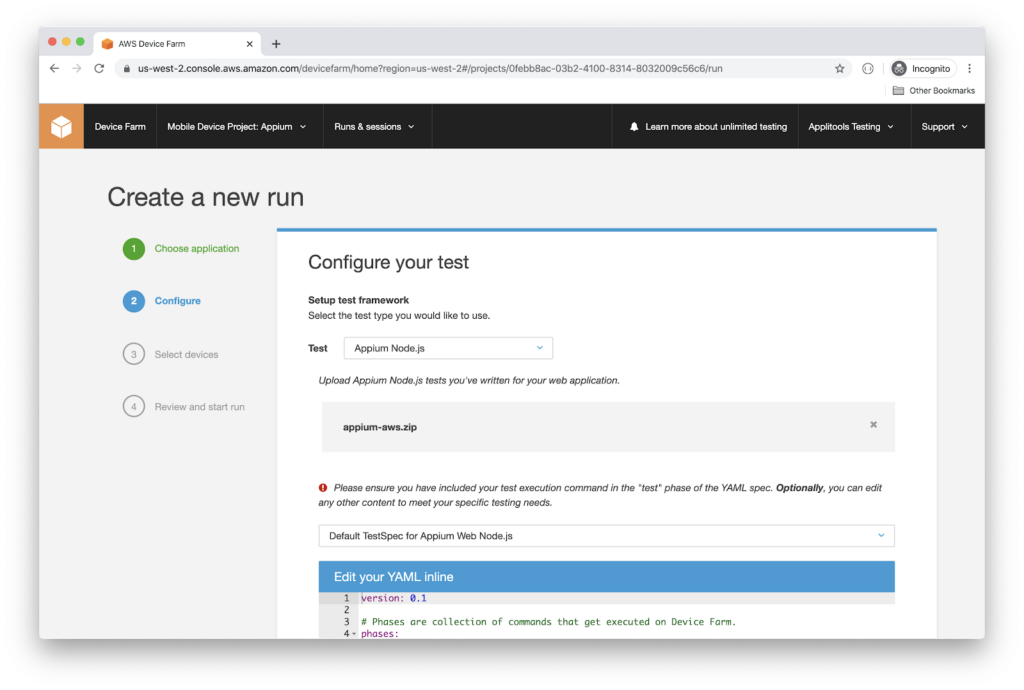

• Select the Appium Node.js test runner
• Upload your tests packaged in a zip file.

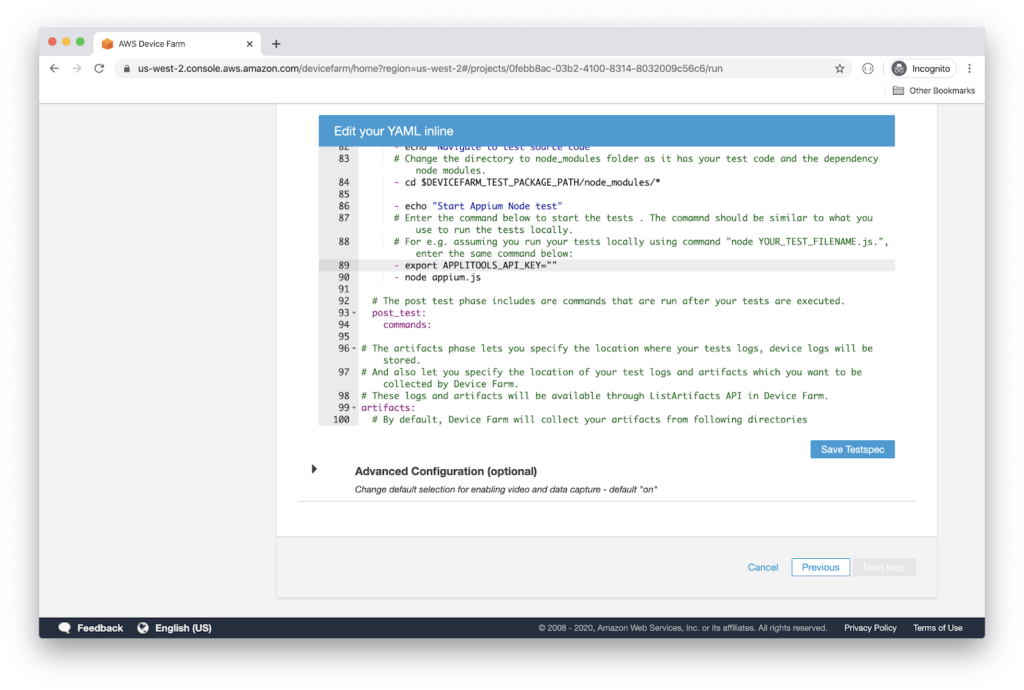

Let’s package our app in a zip file in order to upload it at this step.

Switch back to the code editor, open a command window, and run the following:

npm install

This command is essential to make sure all the NPM package dependencies for this app are installed.

npm install -g npm-bundle

The command above installs the npm-bundle NPM package globally on your machine.

Then, run the command to package and bundle your app:

npm-bundle

The command bundles and packages your app files, and folders, including the node_modules folder.

The output of this step creates the file with the .tgz extension.

The final step before uploading is to compress the file by running the command:

zip -r appium-aws.zip *.tgz

Name the file whatever you wish.

Now you can upload the .zip file to AWS Device Farm.

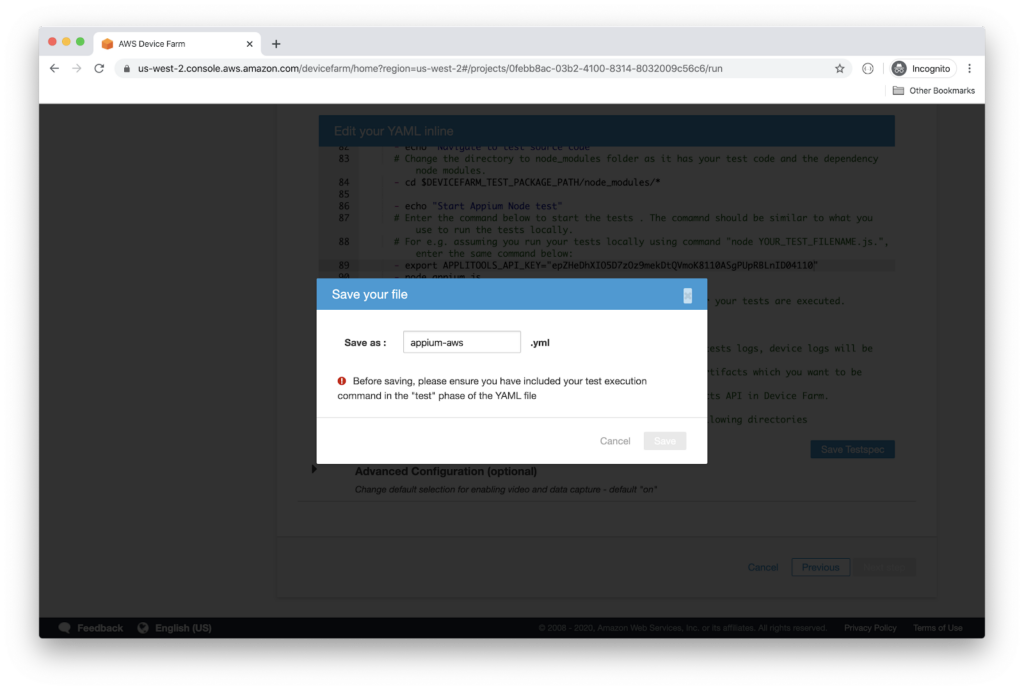

Once the file uploads, scroll down the page to edit the .yaml file of this test run like so:

• Make sure you insert your Applitools API Key as shown in the diagram.
• Add the node appium.js command to run your test script.
• Click the Save Testspec file.

• You can name it anything you want.

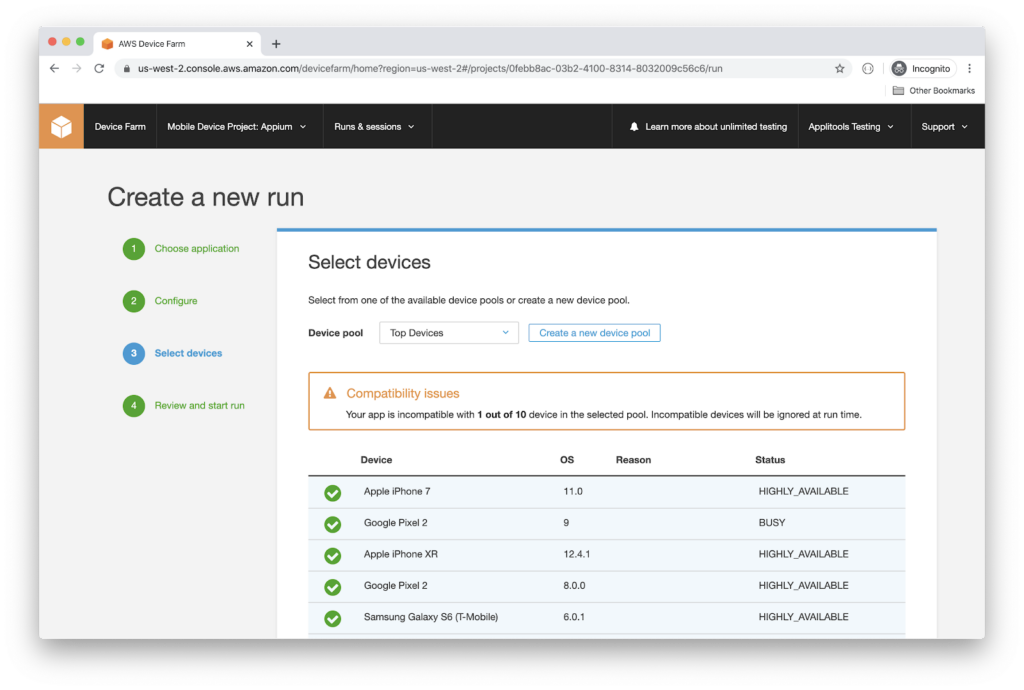

• It’s time to select the devices that you want to run the test script against. I will pick up a customized list of devices. Therefore, click the Create a new device pool button.

• Give this new pool a name.

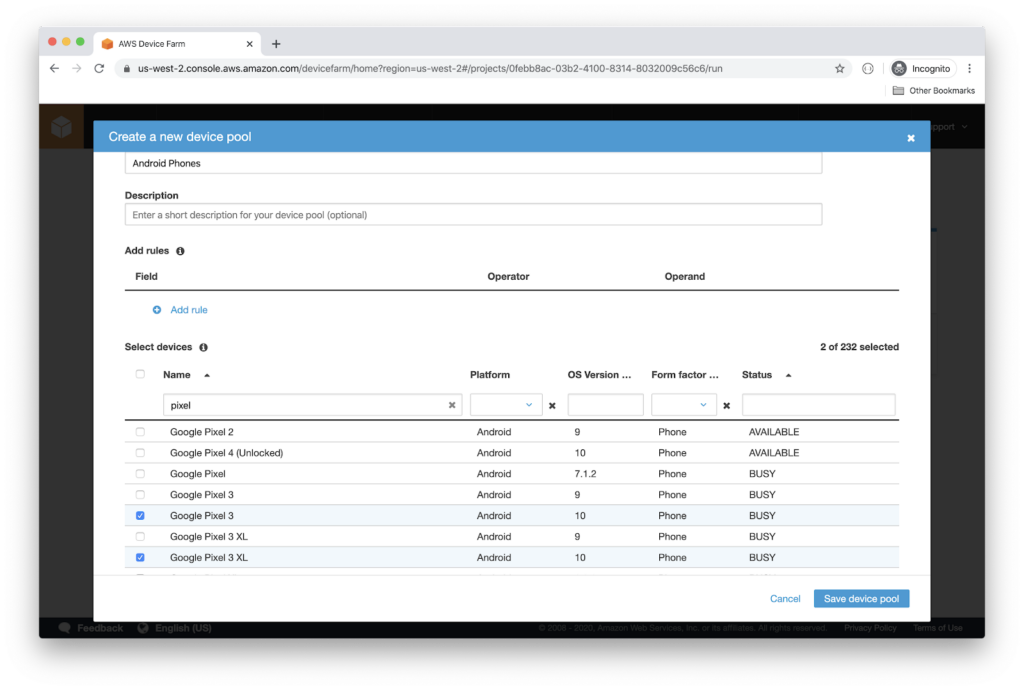

• Pick up the selected Android Devices. You may select others too.
• Click the Save device pool button.

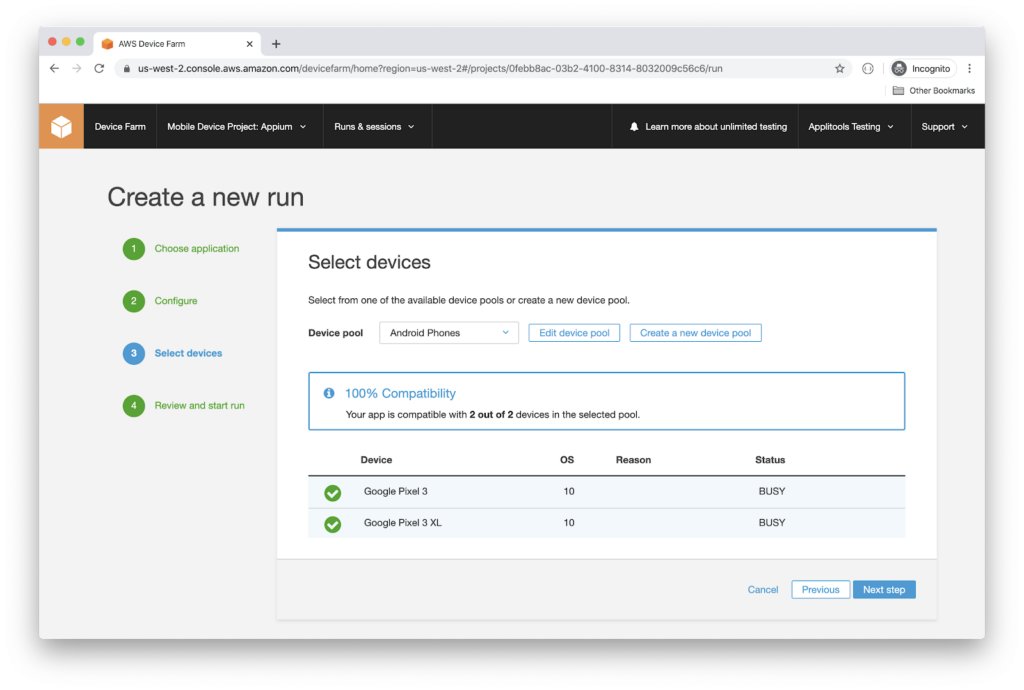

• Now, you can see the new device pool selected with the devices listed.
• Click the Next step button.

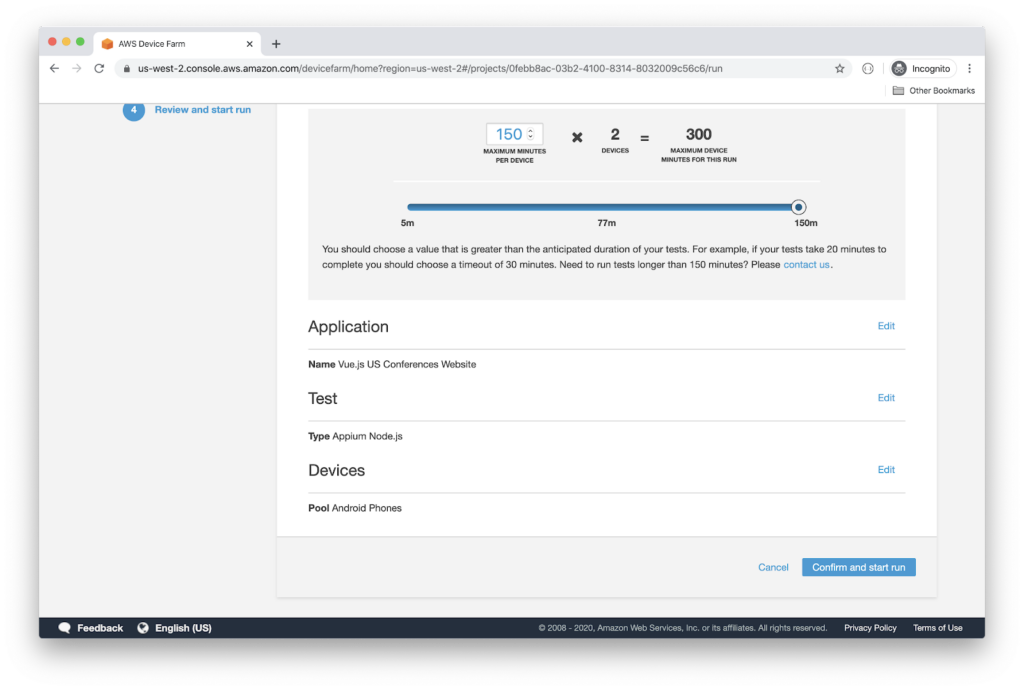

• Locate and click the Confirm and start run button.

• The test run starts!
• Select the test run listed.

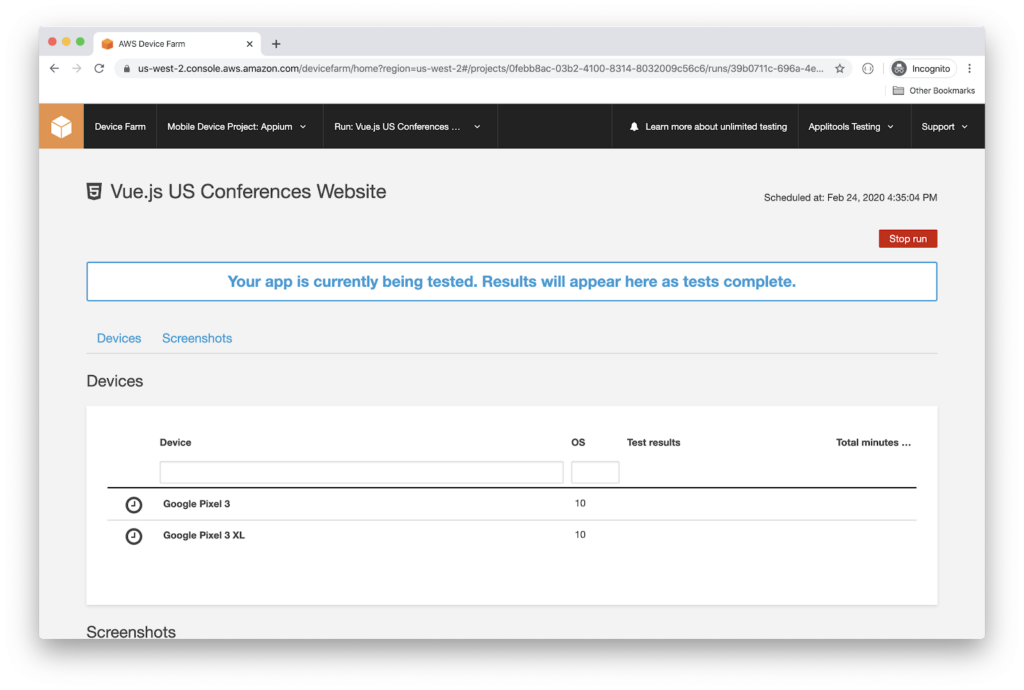

• You can watch the progress on both devices as the test is running. Usually, this step takes a bit of time to run and complete.

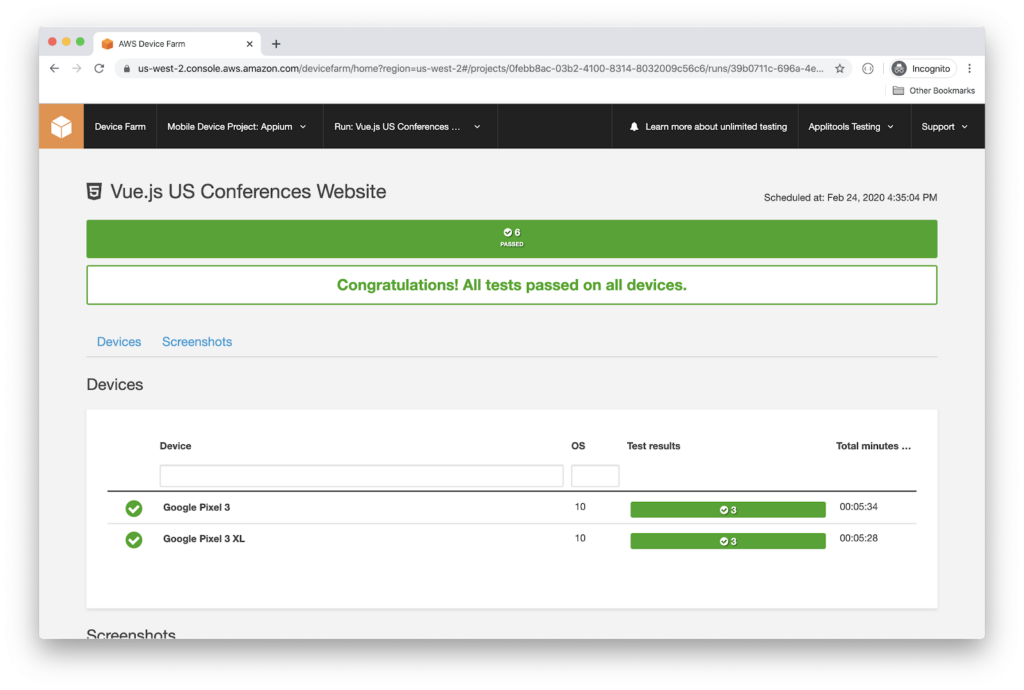

• Finally, the results are displayed clearly, and in our case, all the green indicates a pass.

Verify Test Results on Applitools Test Manager

Switch back to the Applitools Test Manager, and verify the results of this second run via AWS Device Farm.

As expected, we get exactly the same results as running the test script locally.

Conclusion

Given the massive integrations that Applitools offers with its rich SDKs, we saw how easily and quickly we can run our Visual UI tests in the cloud using the AWS Device Farm service. This service, and similar services, enrich the Visual regression testing ecosystem, and make perfect sense when performing them.

For More Information

• Request an Applitools Demo
• Sign up for a free Applitool account
• Progressive Web Apps: Building Compelling Apps with the Latest Mobile Web Technology
• Learning Appium Visual Testing on TAU
• Cross-browser Testing With Cypress.io
• How Visual UI Testing can speed up DevOps flow
