Data-Driven Testing with Visual AI

All About Measuring Behavior

All software testing involves two activities: applying input and measuring the output behavior. When you can do both using an automated tool, you can automate your tests.

As I have discussed elsewhere, Applitools exists because we know the limits of building test automation around checking the DOM. Testing for the existence of web elements in the response DOM can be misleading, as individual measured elements of the DOM remain unchanged to the test code but the user experiences a visual difference.

In Chapter 3 of Raja Rao’s course on Modern Functional Testing through Visual AI, Raja compares test methods around code maintenance. Specifically, he looks at data-driven tests, used as the building blocks of test automation.

Almost all automation today uses code to check the DOM for specific text elements. Like most of us, you probably assume that, as long as the elements continue to exist, the user experience does not change. In practice, that assumption fails on some number of pages in your app.

The more times you make global or local CSS changes, and the more times you fail to visually validate, your tests miss errors that your customers experience. Ads overlap or get hidden. Text formatting fails. Color changes don’t get validated – resulting in camouflaged behavior. Even when you write specific tests for expected behavior, it’s easy to write tests that fail to catch obvious problems in subsequent releases. As a result, your users to wonder who ran those tests. (Hint: get a mirror.)

Simple Example Login Screen

Raja demonstrates data-driven testing with Visual AI by first looking at a login page of a test application.

In a legacy functional test, the login screen, which asks for a username and password, has five possible behaviors:

1. Missing username and password – The user clicks on the login button without filling in a username and password, and the app responds with an error message requesting that the user fills in the username and password before login.
2. Empty password – The user fills in the username and clicks the login button, and the app responds with an error message saying that the user must include a password.
3. Empty username – The user fills in the password and clicks the login button, and the app responds with an error message saying that the user must include a username.
4. Incorrect credentials – The user fills in the username and password and clicks the login button, and the app responds that the username and password are invalid
5. Correct credentials – The user fills in the username and password, and the app moves through to the next screen successfully.

This kind of screen sets up perfectly for a data-driven test. You can apply each combination with a test table or hard-coded set of tests and measure the responses from the app. Hence – data-driven: your test data varies and you measure different results.

Sample Test Code in Java – Legacy Functional Tests

Here is the legacy functional code Raja uses as test code

The legacy code uses a data table of input states and expected output conditions. When Raja runs the code, it behaves as expected – the failure messages get detected for failures, and the passing test passes correctly. Each of the tests uses the identifier for the failure message to pull up the failure response, while the passing test simply moves to the appropriate screen.

As a complete aside, Raja inadvertently shows one of the perils awaiting the life of a tester. In his chapter, Raja shows only four of the five test combinations. He skips over the invalid username/password combination. Bummer.

Testing often serves the last line of defense for uncovering faulty code.  How does your organization react when a bug escapes because of a missed test case? How much time do you spend maintaining test code versus considering test coverage?

App Changes and Test Changes with Legacy Code

Raja’s next focus is what happens when page behavior changes. Page behavior can change any time developers update the app.

Focusing on the four combinations of username and password (none entered, one but not the other, and both), Raja uses the existing test behavior to highlight where the test code needs to be updated.

As it turns out, app changes can result in an app that no longer behaves correctly for users. However, even though users cannot use the app, existing tests still pass. Whoops.

Here were the changes Raja deployed and how the existing tests fared:

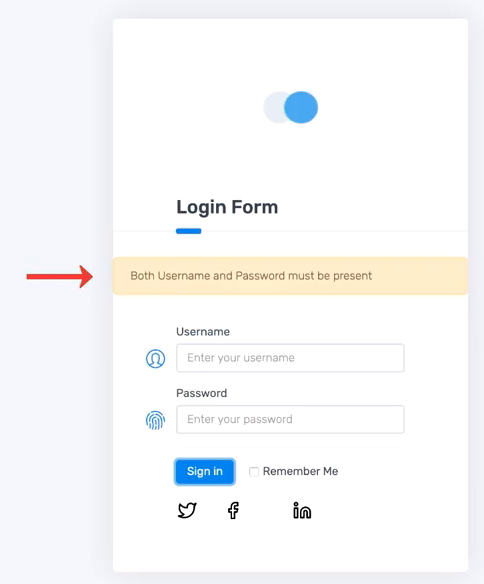

• In the new app version, a new alert text appears when the user enters no username or password and clicks the “Login” button. The existing test caught the changed text. This part of the code would need to be updated. You have to maintain the test code on changes.
• Raja updated the case of the missing Pwd so that the error text and text box were either masked or hidden on the page. However, they existed in the DOM but were inaccessible to the user. Because they existed in the DOM, the existing tests passed. Whoops.

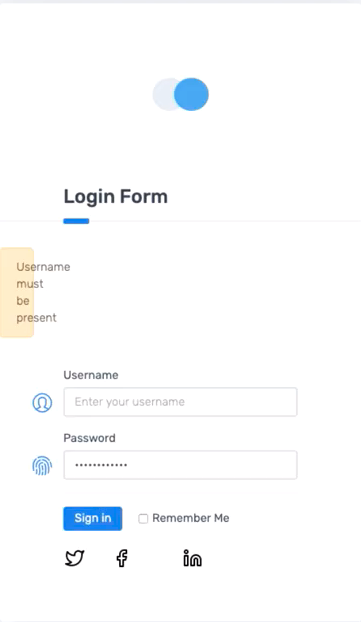

• Raja updated the case of the missing Username to have the error message wrap into a text box with the same starting coordinates relative to the top of the page, but only one word wide. In this case, the visual behavior does not match the prior behavior, but the test passes as the correct locator and identifier remain.
• On login success, the locator used to log the username is no longer available. So, the user logs in successfully, but the test fails.  You need to go in and manually modify the locator to the new code.

So, the one test fails because of an intentional change, and one test fails because of a change that is likely, but unclearly, intentional. The two other tests pass because the tests only measured the existence of the response code. There was no way to consider the utility of the app from release to release.

It’s pretty easy to see why this happens – the test code runs so quickly that the tester cannot see the differences.

What do you think about these kinds of changes? Do you get taken by surprise when developers forget to document new behavior or forget to let you know about layout or CSS changes?

All tests need maintenance when the app changes. Some organizations conclude that they must limit their changes to ensure testability. They need to maintain that code – which takes time and effort.

Others search for a different way. So, Raja walks through data-driven testing using Visual AI to measure application behavior.

The New Way – Visual AI

Raja walked us through the same tests using Visual AI. Instead of having element locator and text capture assertions as part of the data-driven tests, each configuration test had a unique name and got captured separately by Applitools Eyes.  So, just to be clear – the browser automation uses locators to enter data and drive actions. However, the testing uses an app page snapshot.

When the app changes were implemented, Applitools showed all three differences.

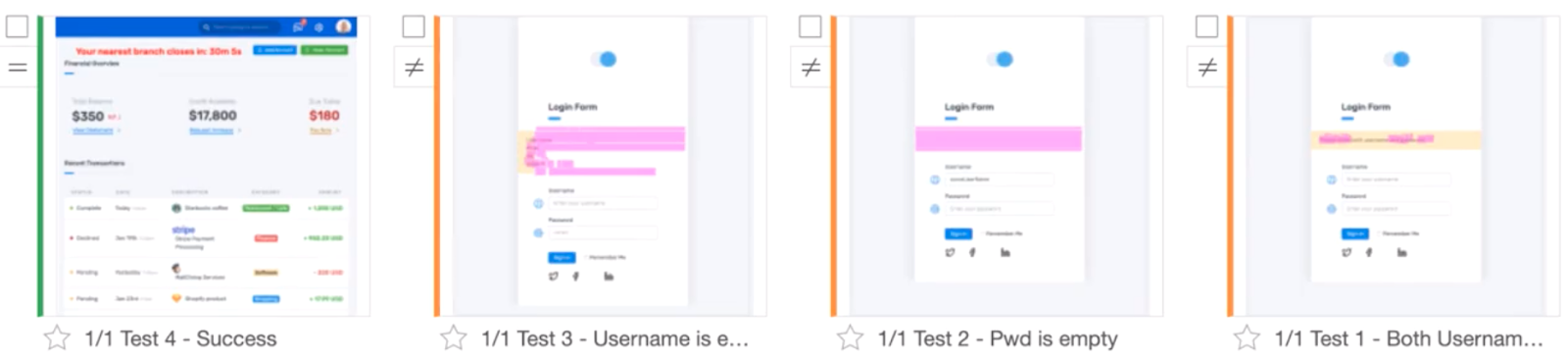

Here were the results from testing the old version of the app – and then running the same tests on the new version of the app.

On the far left, the test in green shows that the login continued to run.  So, even though the legacy test failed (because of a change in the username locator), Applitools passed this test.

Handling Failures with Visual AI

The other three tests are the ones we discussed earlier. Each of them shows up as orange – Unresolved. This means Applitools indicates a difference and requires the operator to indicate an intended difference with a thumbs-up and a failure with a thumbs-down.

• For the missing username, the error message displayed but the alignment changed. Applitools highlighted the differences. An operator can indicate this test fails with a thumbs-down.
• With the missing password, the error message appears invisible, even though the code exists in the DOM. An operator can indicate this test fails with a thumbs-down.
• In the case of both missing username and password, the text box with an error message still shows up in the same place, but the app contains an updated error message. An operator can indicate that this test passed with a thumbs-up. The thumbs-up also tells Applitools to accept the updated image as the new baseline.

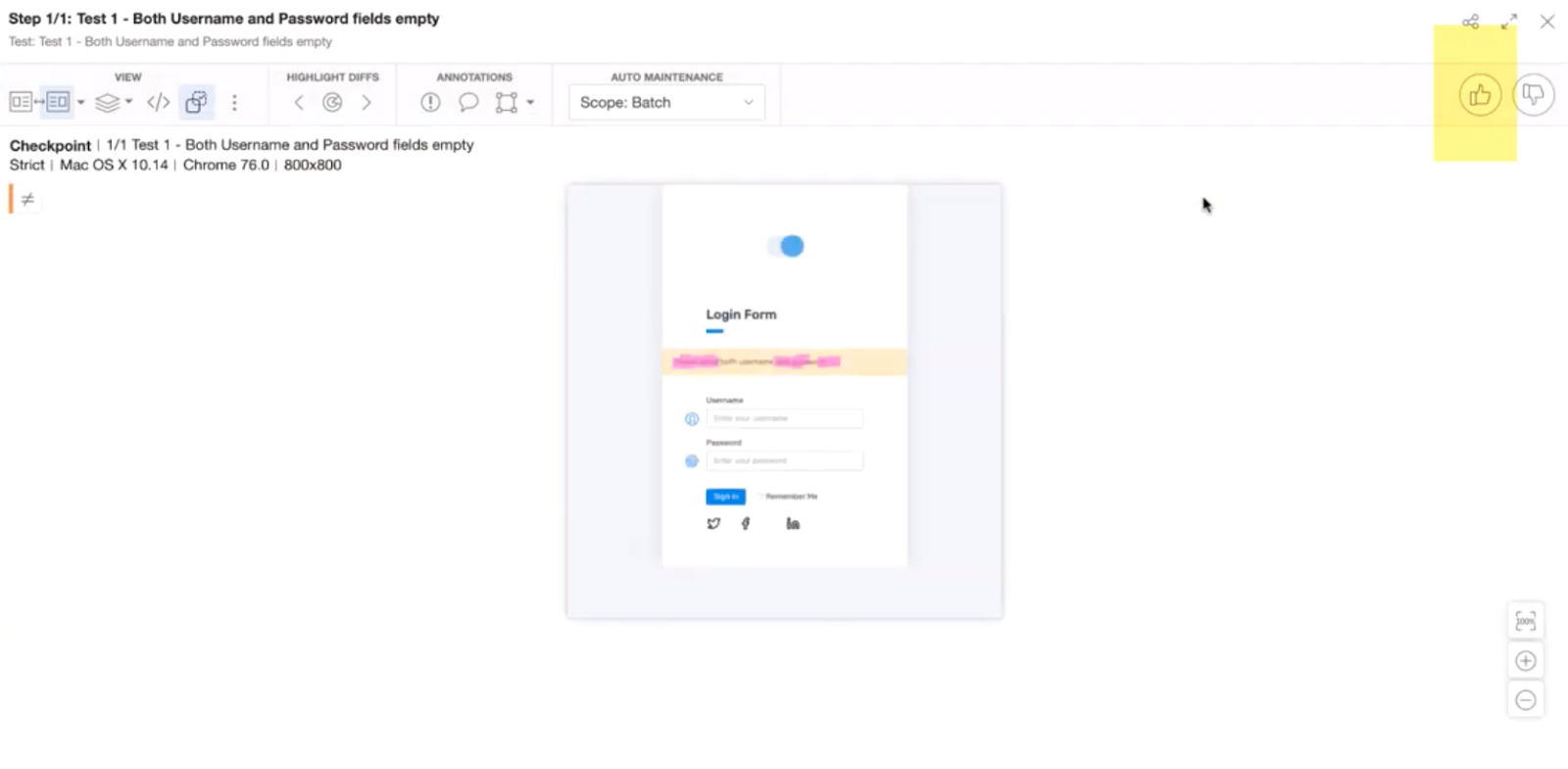

Here is a screenshot of that last example:

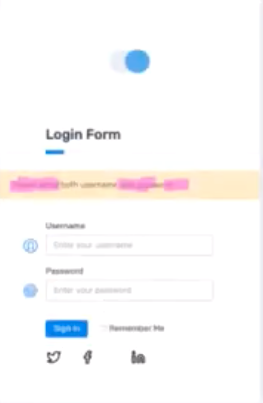

All right, that’s kind of an eye chart. Here is what Applitools shows for the screen capture:

The text in pink highlights the difference between the baseline image and the checkpoint. In this case, we’re seeing only the checkpoint and the highlighted differences. You can configure the display to show the baseline and checkpoint images side-by-side with the differences highlighted. It’s up to you.

Once you make your evaluation, as an operator, you simply click the thumbs-up or thumbs-down icon at the top right:

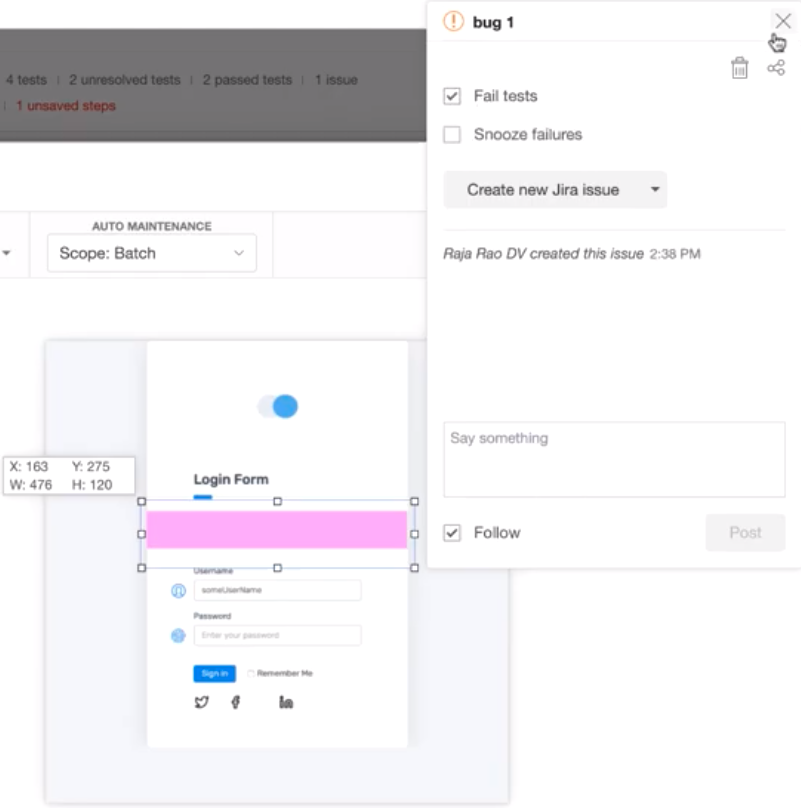

Similarly, here’s what happens on a failure:

This failure captures the error on the missing password – where the alert text and text box rendered invisibly. Applitools shows the difference as a pink region.  By marking this area as the error, Applitools lets you inform the development team via Jira where the error could be found. And, with the optional root cause analysis, you can even capture the DOM code resulting in the behavior. These capabilities make you much more effective – you can increase your coverage and improve your team communications when you encounter unexpected behavior.

What’s The Point Of Data-Driven Testing And Visual AI?

Raja’s course makes it clear that all of us generally take way more care in our test development when building an app, but our test maintenance teams get stuck running tests as a way to maintain all that code once an app goes through updates. Even when our development teams communicate changes and deliver updated tests, bugs go through.

Visual AI lets the browser rendering become the metric for app behavior. Instead of looking for artifacts in the unrendered HTML and hope that they’re right, Visual AI lets you say, “Okay, let’s rerun the tests and see what’s different.”

Just by running your existing tests, Visual AI catches all the behaviors the developers intended – as well as stuff they forgot to tell you to modify. Cool, isn’t it?

In addition to a better workflow, Visual AI gives you a broad vision. In a different blog post, I talk about functional test myopia – you only write tests for the behaviors you expect to see and fail tests when the behaviors you inspect differ from your expectations. What about the rest of the page? You just assume that’s still the same, right? Visual AI captures all that as well.

Takeaways from Chapter 3

You spend lots of your time building data-driven tests. In fact, for any action that has a combination of inputs to test against outputs, its easiest to think of those as data-driven.  However, as your app develops, you can become complacent that your testing covers the behavior of your app when, in fact, the app has changed. You can come up with changes that your app testing passes but, in fact, fails for users.

What can you do about that? Drive your data-driven tests as you have always, and use visual AI to assert the output. You catch visual changes and eliminate dependencies on upstream developers capturing changes for you. Simultaneously, you increase your efficiency by reducing the test code you have to manage.

Next up – Chapter 4!
